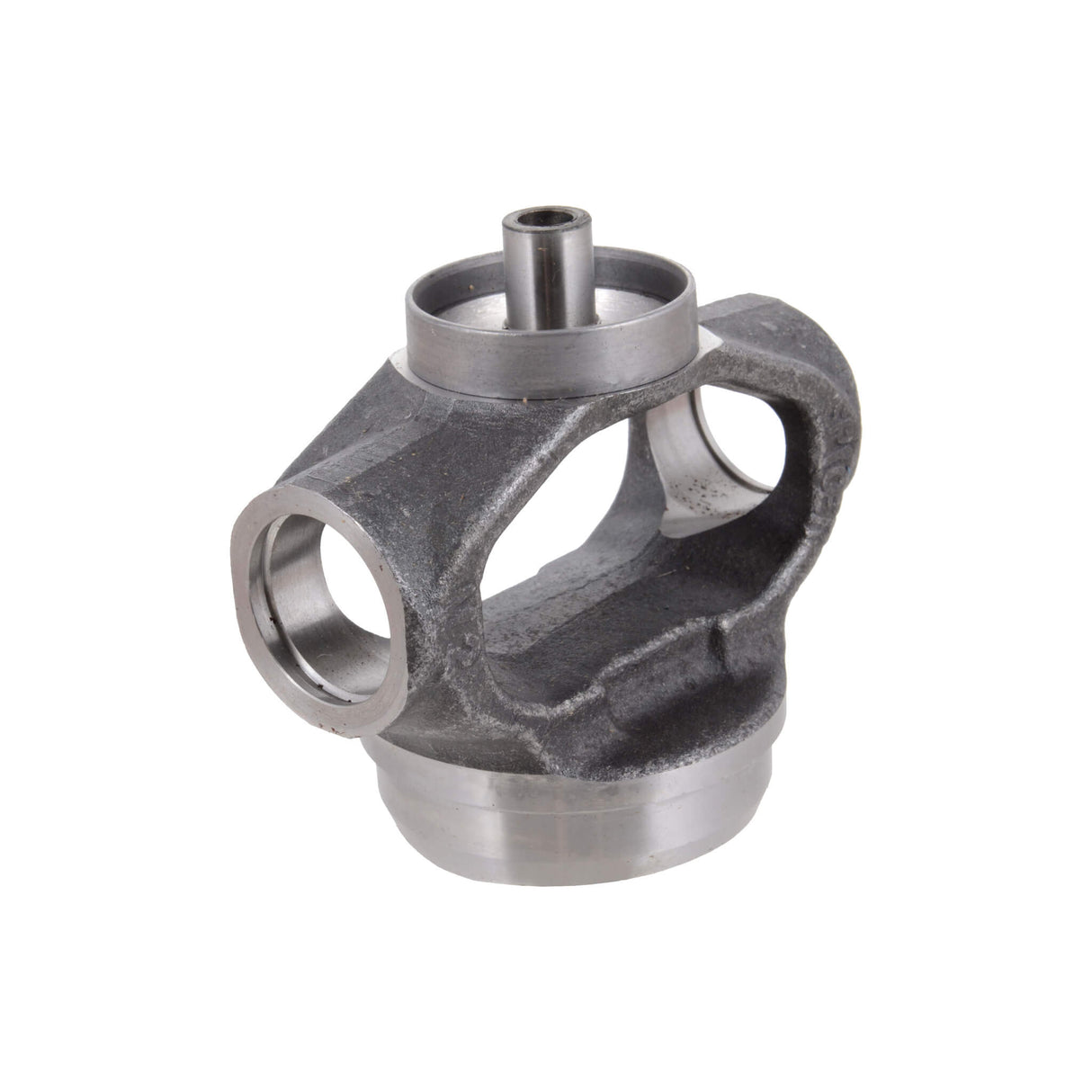

2-28-2407X Double Cardan CV Ball Stud Tube Weld Yoke | 1210 Series

The 2-28-2407X Double Cardan CV Ball Stud Tube Weld Yoke from the 1210 Series is expertly engineered to provide superior strength, reliability, and performance in demanding driveline applications. Crafted from high-quality materials, this yoke ensures long-lasting durability, even under the most challenging conditions.

Featuring a double cardan design with an integrated ball stud, this yoke enhances flexibility and reduces vibrations, improving drivetrain efficiency and minimizing stress on connected components. The tube weld yoke construction further boosts strength, providing a secure and stable connection that optimizes power transmission for smoother operation.

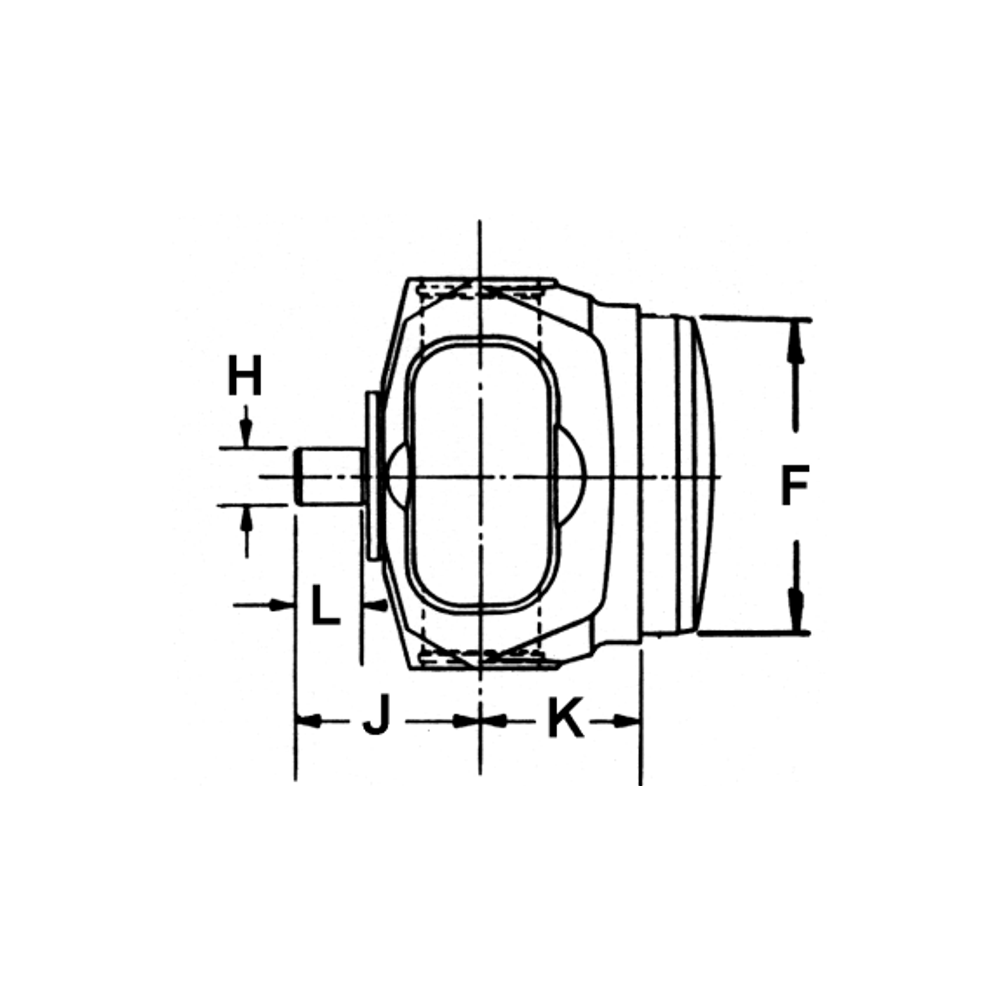

Key Specifications:

• Series: 1210
• Ball Stud Diameter (H): 0.500"
• Ball Stud Length (L): 0.594"
• Butt Diameter (F): 2.375"
• Centerline to Ball Stud End (J): 1.641"
• Centerline to Weld (K): 1.310"
• Dust Shield: Steel
• Joint Angle: 10.5°
• Tube Diameter and Wall Size: 2.500" x 0.065"
• Universal Joint Bearing Diameter (D): 1.062"
• Universal Joint Retaining Width (E): 2.688"

The 2-28-2407X Double Cardan CV Ball Stud Tube Weld Yoke is the ideal solution for high-performance, heavy-duty drivetrain systems, offering unmatched stability and reliability for long-lasting, efficient operation.

• Spicer 2-28-2407X
• Daimler: SP 2 28 2407X
• Daimler: SP 2 28 2407XHP
• Freightliner Trucks: SP 2 28 2407X
• Freightliner Trucks: SP 2 28 2407XHP
• International Harvester (IHC): 2282407X
• International Harvester (IHC): D2282407X
• International Harvester (IHC): E2282407X
• Navistar: 2282407X
• Navistar: D2282407X
• Navistar: DS2282407X
• Navistar: E2282407X
• Neapco: N2-28-2407X
• UAP: 2-28-2407X
• Volvo Cars: SP 2282407X
• P2-28-2407X
