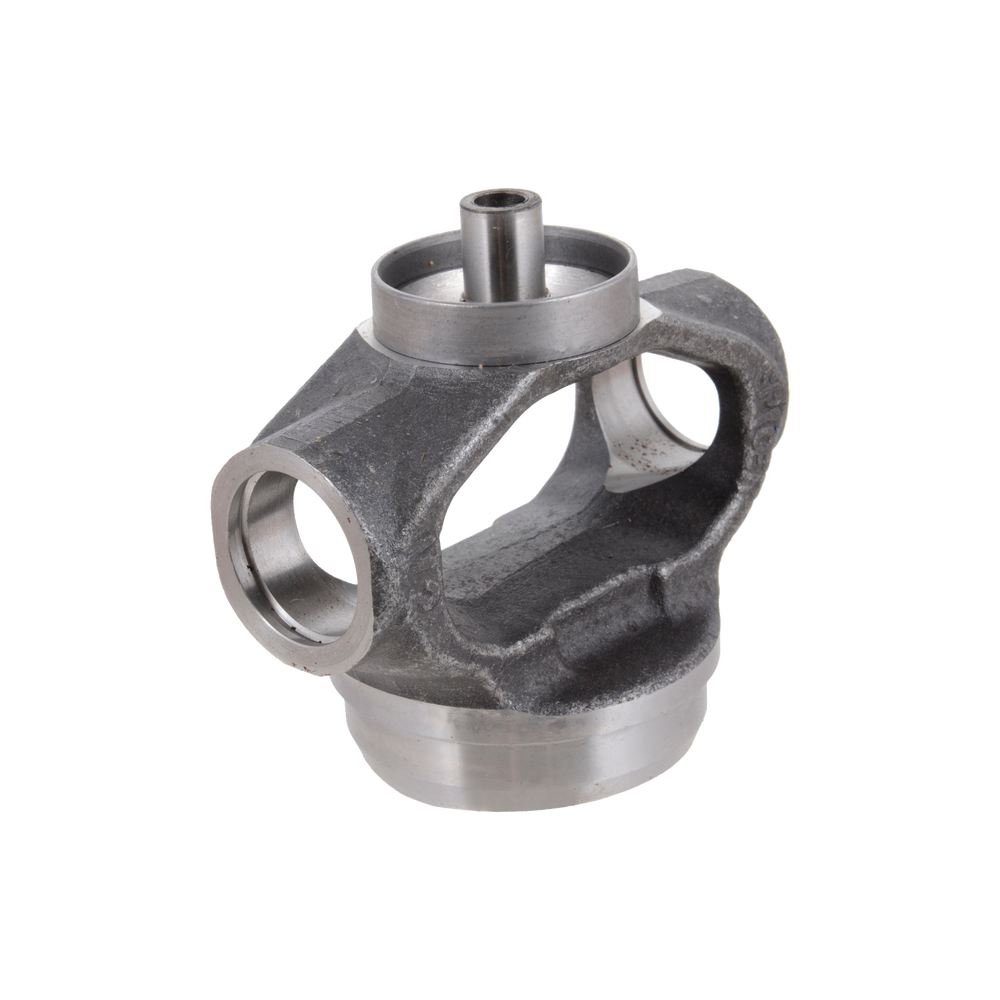

2-28-3067X Ball Stud Tube Yoke 1330 Series, 2.500 x 0.083 Wall Tube
Couldn't load pickup availability
Description
Description
The 2-28-3067X Ball Stud Tube Yoke from the 1330 Series is engineered for high-performance and durability, making it an ideal solution for demanding drivetrain applications. This precision-crafted yoke provides reliable torque transfer and ensures smooth operation in even the most challenging conditions.
Designed to fit 2.500" x 0.083" wall tubes, the 2-28-3067X features a robust 0.500" ball stud diameter and a 0.590" ball stud length, which enhances flexibility and minimizes vibrations in the driveline system. The 1.062" bearing cap diameter and 2.344" butt diameter ensure a strong, stable connection, while the 1.375" C/L to weld and 1.670" C/L to ball stud end provide a precise fit for optimal performance.

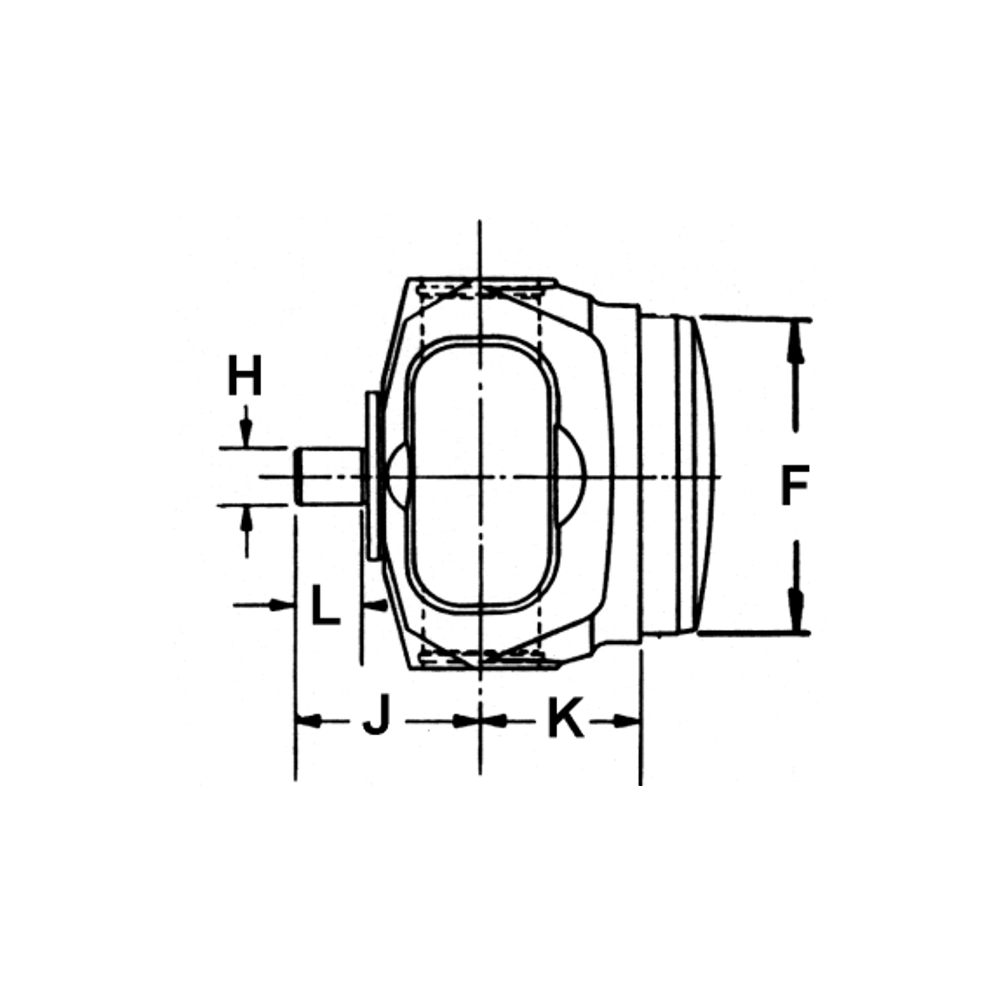

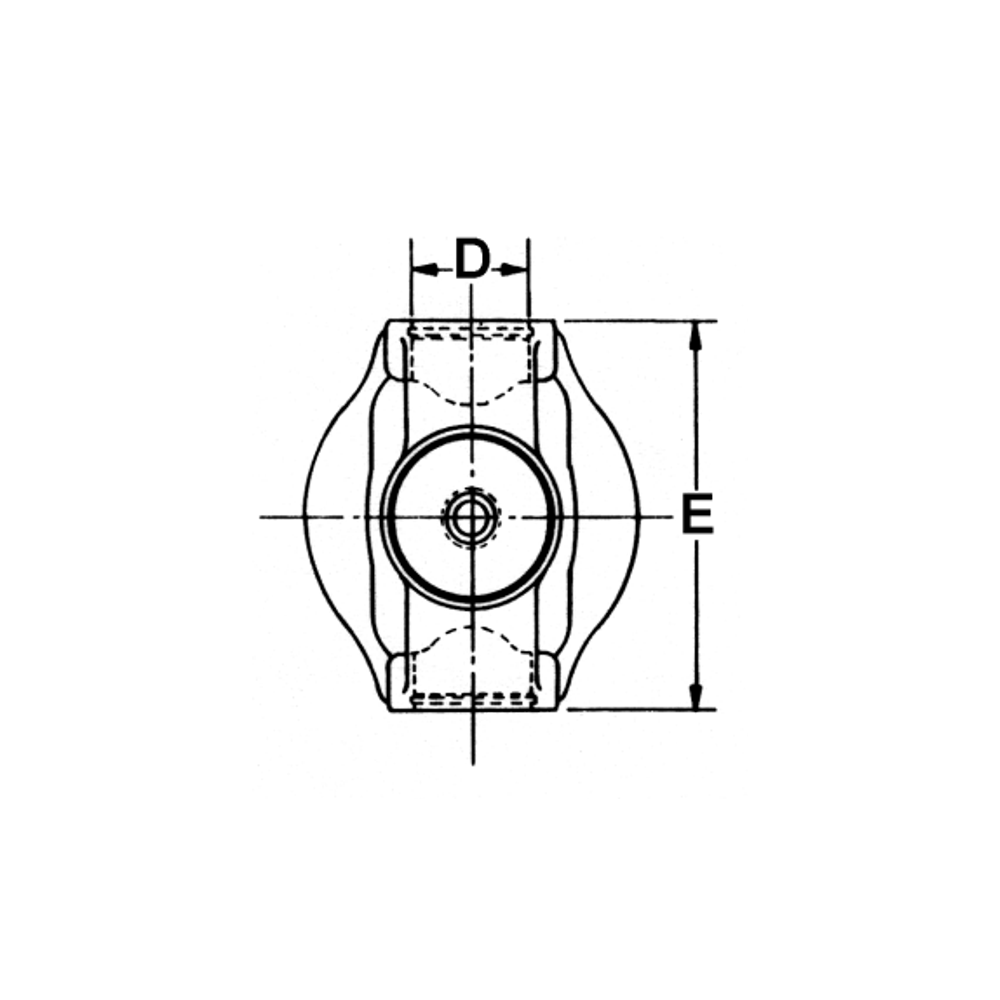

Key Specifications:
- Series: 1330
- Ball Stud Diameter (H): 0.500"
- Ball Stud Length (L): 0.590"
- Bearing Cap Diameter (D): 1.062"
- Butt Diameter (F): 2.344"
- Centerline to Ball Stud End (J): 1.670"
- Centerline to Weld (K): 1.375"
- Outside Yoke Dimension (E): 3.785"
- Tube Diameter and Wall Size: 2.500" x 0.083" (Welded)
- Slinger Or Seal Part Number: 2-86-418
The 2-28-3067X Ball Stud Tube Yoke is designed to deliver superior strength and durability, ensuring reliable performance for heavy-duty, high-torque applications. Upgrade your drivetrain with this precision-engineered component to achieve enhanced efficiency, reduced vibrations, and long-lasting reliability.
