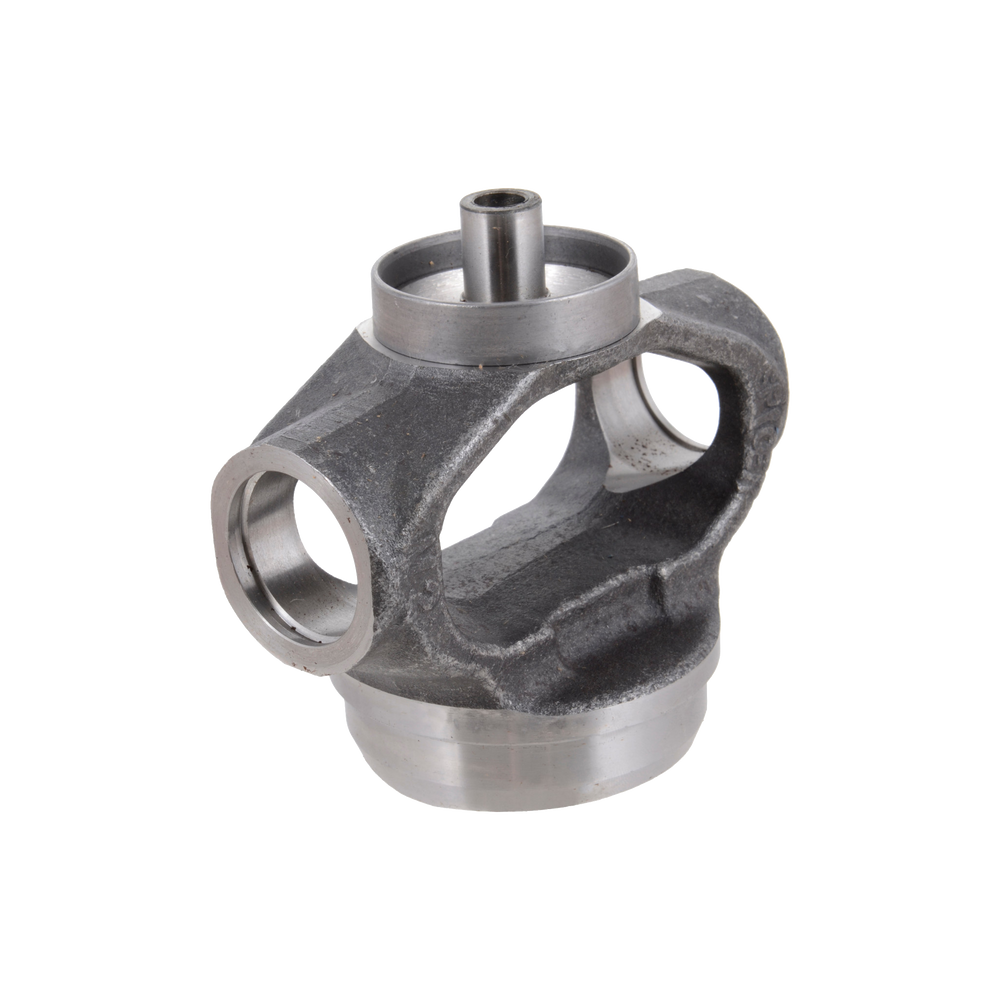

2-28-3257X Double Cardan CV Ball Stud Tube Weld Yoke | 1330 Series

The 2-28-3257X Double Cardan CV Ball Stud Tube Weld Yoke, part of the 1330 Series, is designed for maximum durability and superior performance in high-demand drivetrain applications. Constructed from high-strength materials, this yoke ensures smooth operation and enhanced flexibility, reducing vibration and stress on driveline components.

Featuring an integrated ball stud design, the 2-28-3257X allows for greater range of motion and improved torque transfer, ensuring efficient power delivery. The outside snap ring style provides additional retention strength, making this yoke ideal for heavy-duty applications.

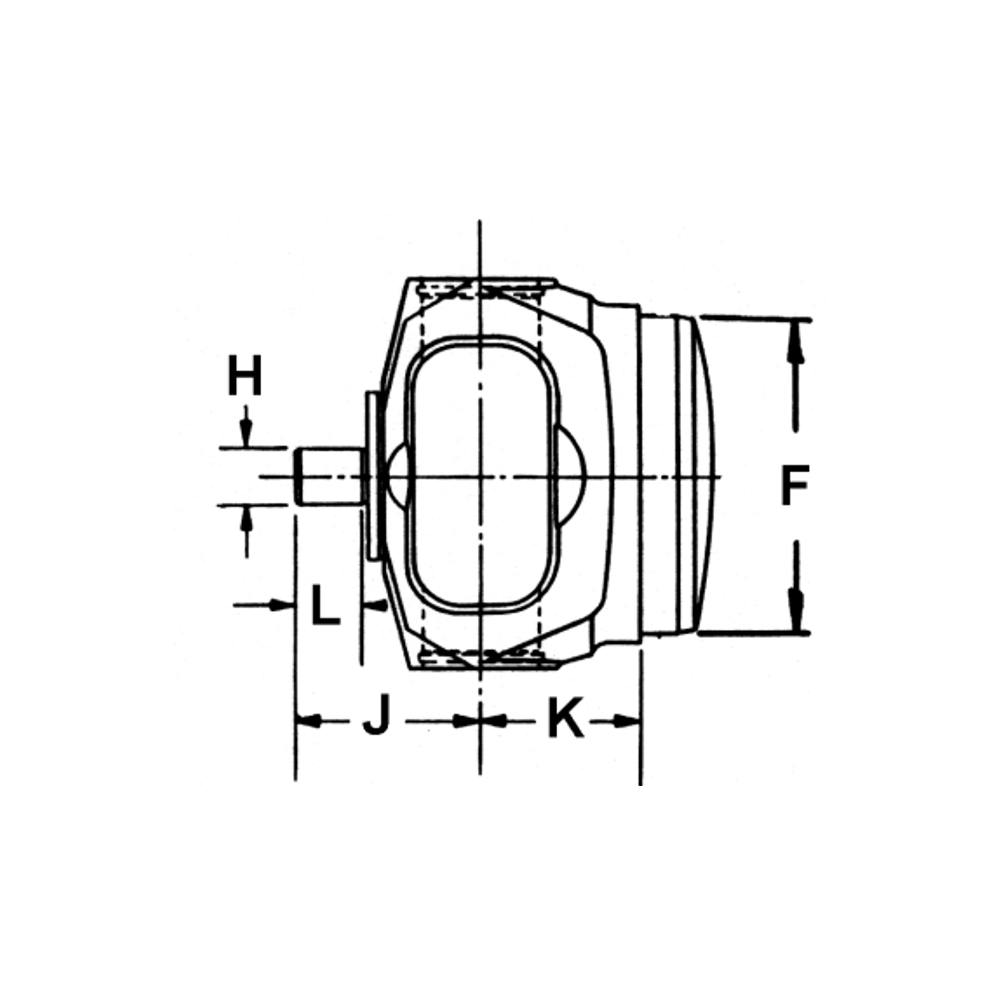

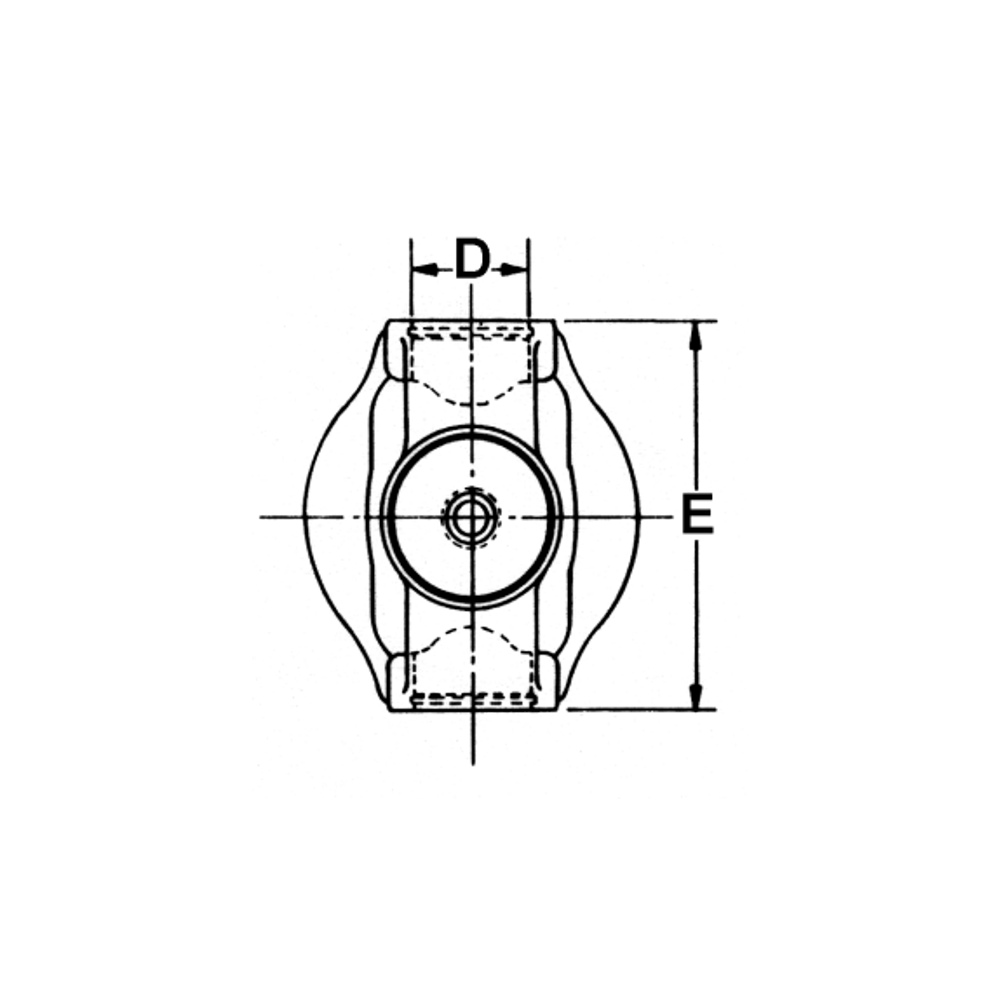

Key Specifications:

• Series: 1330
• Ball Stud Diameter (H): 0.500"
• Ball Stud Length (L): 0.590"
• Bearing Cap Diameter (D): 1.062"
• Butt Diameter (F): 1.766"
• Centerline to Ball Stud End (J): 1.670"
• Centerline to Weld (K): 1.375"
• Outside Yoke Dimension (E): 3.785"
• Style: Outside Snap Ring
• Tube Diameter and Wall Size: 2.000" x 0.120" (Welded)

This 2-28-3257X Double Cardan CV Ball Stud Tube Weld Yoke offers superior performance and reliability, making it the ideal choice for vehicles requiring optimal drivetrain functionality. Upgrade your system with this precision-engineered yoke for enhanced stability, smoother power transfer, and long-lasting durability.

• Spicer 2-28-3257X
• N2-28-3257X
